About Product

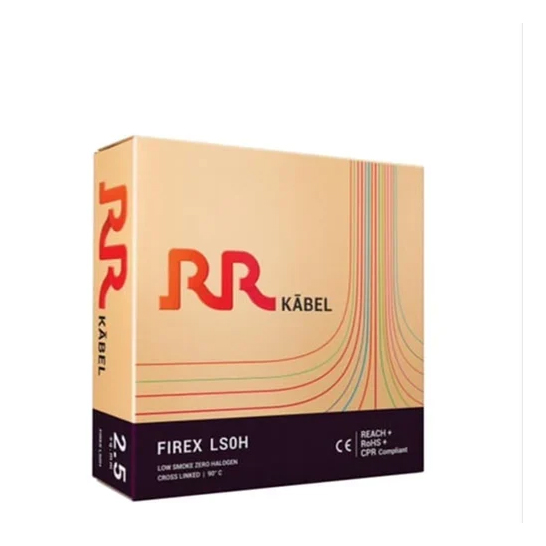

RR Kabel FIREX LS0H-EBXL House Wire
| Wire Size | 2.5 sqmm |
| Model | Firex |
| Insulation Type | HFFR |
| Roll Length | 90 m |
| Color | Red |
| Brand | RR Kabel |
Firex LS0H-EBXL Cable
Features: Electron Beam Cross-linked | HFFR (Halogen Free Flame Retardant) insulation | Non-Toxic & Non-Corrosive | Does not melt up to 900°C
Application
Firex LS0H-EBXL is ideal for fixed and protected installations in building infrastructures where fire protection is critical — such as airports, hospitals, schools, malls, and high-rise buildings above 15 meters.
Statutory Requirements
As per the latest Central Electricity Authority (CEA) Regulation 2023, Halogen Free Flame Retardant cables are mandatory in public infrastructures regardless of height.
Technical Data
- Approvals: IS 17048 marked, FIA/TAC
- Cable Code: XZ
- Voltage Grade: Up to and including 1100V
- Conductor: Multi-drawn electrolytic annealed copper for uniform resistance and flexibility
- Insulation: E-Beam Crosslinked HFI-XL 90 Halogen Free Flame Retardant (HFFR)
- Colours: Green, Black, Red, Yellow, Blue, Grey, White
- Marking: ‘FIREX LS0H-EBXL’
- Packing: 90 m coils in protective cartons
Properties
- Does not melt up to 900°C
- Temperature range: -25°C to +110°C
- Max short circuit temperature: 300°C
- Non-toxic, non-corrosive (chlorine free)
- Negligible, transparent smoke emission
- Excellent water, abrasion, and weather resistance
- Anti-rodent & anti-termite
- Extended service life
- Facilitates firefighting; does not suffocate victims in fire
- Self-extinguishing & flame retardant (IS 10810 P–61)
Cable Design Parameters
Complete part numbers by adding suffix (in place of ‘xx’) for the required colour:
- 01 – Green
- 02 – Black
- 03 – Red
- 04 – Blue
- 05 – Yellow
- 06 – Grey
- 07 – White
